又可調整高低
耐腐蝕，耐酸鹼
材質 : SUS304不鏽鋼
安裝時底座須攻牙

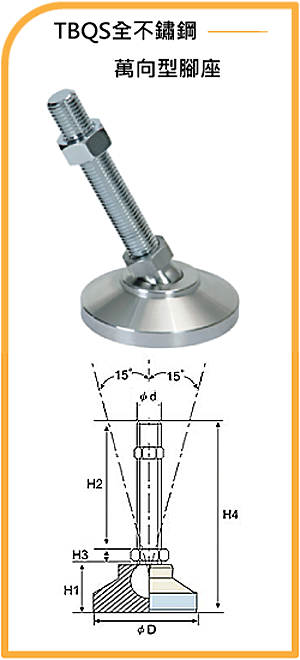

| 型號 | 底盤尺寸 | 螺絲尺寸 | H4 | 荷重kgf | ||||
| ØD | H1 | Ød | H2 | H3 | ||||
| TBQS-1290 | 65 | 27 | M12xP1.75 | 90 | 17 | 134 | 1000 | |
| TBQS-12115 | 65 | 27 | M12xP1.75 | 115 | 17 | 159 | 1000 | |
| TBQS-16115 | 75 | 100 | 27 | M16xP2.0 | 115 | 21 | 163 | 1500 |
| TBQS-16165 | 75 | 100 | 27 | M16xP2.0 | 165 | 21 | 213 | 1500 |
| TBQS-20115 | 75 | 100 | 27 | M20xP2.5 | 115 | 21 | 163 | 2500 |
| TBQS-20165 | 75 | 100 | 27 | M20xP2.5 | 165 | 21 | 213 | 2500 |
